FAA Chart: VFR TAC LAS VEGAS

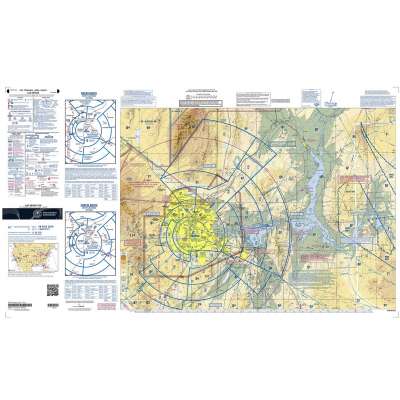

This is the FAA's 1:250,000 Las Vegas Terminal Area Chart, built to show the Class B airspace around Las Vegas in more detail than a sectional. The Las Vegas panel spans about 35.6°N to 36.8°N and 116.4°W to 113.8°W. The Las Vegas TAC area falls on the Las Vegas and Los Angeles sectionals.

The FAA intends TACs such as Las Vegas for pilots operating within or near Class B and Class C airspace, and the chart depicts the Class B structure along with airports, navaids, obstructions and visual checkpoints. The FAA prints the Las Vegas VFR Flyway Planning Chart on the back of this chart.

Rolled charts are printed on heavy paper with the entire image on one side. They ship rolled in a cardboard tube. Rolled charts are designed for hanging on a wall or framing.

Lifestyle images may not be to scale. Frame not included.

About Current & Next Editions: Orders for the current edition ship immediately. Orders for the next edition will not ship until that edition becomes available. The current edition is dated October 29 – December 23, 2026. The next edition is dated December 24, 2026 – February 17, 2027 and ships December 15. Current edition and next edition orders must be shipped separately. If you combine these on one order, you may be charged for two shipments.
